SSO with SAML and OAuth

Single sign-on (SSO) is a user authentication process that permits a user to enter a username and password once per session to access multiple applications. A designated application provided by an Identity Provider (IdP) must authenticate the user. The applications that rely on the IdP to authenticate users are known as Service Providers (SP). The system supports Identity Provider-initiated and Service Provider Single Sign-On using the HTTP POST binding.

Download this User Guide as PDF

Configuring Single Sign-On SAML 2.0

To configure Single Sign-On SAML 2.0, follow these steps:

  1. X.509 Certificate Requirement
    To implement SAML, an X.509 certificate is needed (which may be self-signed). The certificate uploaded to the company must directly correspond to the private key used to sign the SAML responses.

    Note

    An option to import metadata from the identity provider is available. If you choose to import the metadata, this certificate will be included. This is the preferred approach for obtaining the X.509 certificate. If this is not possible, you will need to obtain the X.509 certificate from the identity provider directly.

  2. Enable Single Sign-On (SAML 2.0)
    The Enable Single Sign-On (SAML 2.0) option within the Login/Logout Preferences widget will need to be enabled.

    • UKG Ready Partners:
      Navigate to Maintenance > Companies > All System Companies, click the Edit Company icon, and check Enable Single Sign-On (SAML 2.0) within the Login/Logout Preferences widget.
    • UKG Ready Customers:
      Navigate to Global Setup > Company Setup, go to the Login Config tab (or add the Login/Logout Preferences widget to any tab), and check Enable Single Sign-On (SAML 2.0).

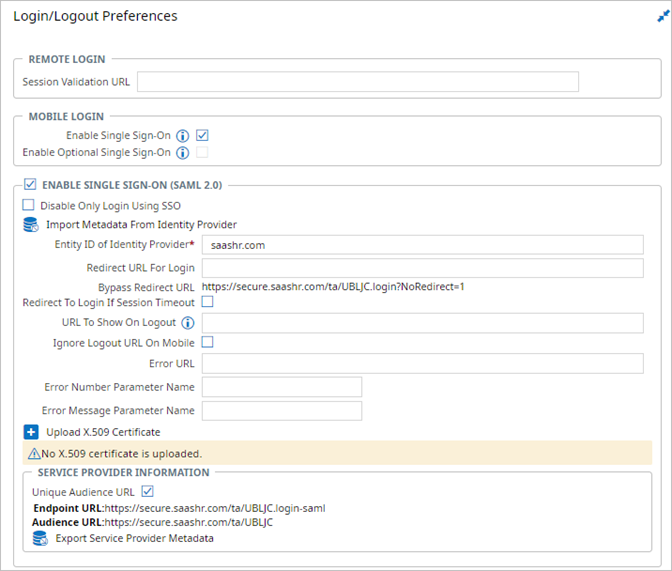

    Login/Logout Preferences

  3. Provide Service Provider Information to IdP
    To enable identity providers to begin SSO configuration, provide them with:

    • Endpoint URL and Audience URL (found in the Service Provider Information section of the Login/Logout Preferences widget).

    Endpoint URL Examples:

    • US: https://secure.saashr.com/ta/company.login-saml
    • EU: https://secure.workforceready.eu/ta/company.login-saml
    • AUS: https://secure.workforceready.com.au/ta/company.login-saml

    Audience URL Behavior:

    • If Unique Audience URL is checked: Includes company domain and short name.
    • Examples:
      • US: https://secure.saashr.com/company
      • EU: https://secure.workforceready.eu/company
      • AUS: https://secure.workforceready.com.au/company
    • If unchecked: Uses company domain only.
    • Examples:
      • US: https://secure.saashr.com
      • EU: https://secure.workforceready.eu
      • AUS: https://secure.workforceready.com.au

  4. Export Service Provider Metadata
    After setting the Unique Audience URL, generate an XML file for the IdP by clicking Export Service Provider Metadata. If the IdP cannot import XML, manually enter the information from the Service Provider Information section.

    Export Metadata

  5. Configure Additional Settings

    • Redirect URL For Login: The Single Sign-On Service URL provided by the IdP (required for SP-Initiated SSO). Configure this after SSO is fully set up to avoid redirecting active users unexpectedly.

    • Bypass Redirect URL: URL for direct logins (bypassing external IdP).

    • URL To Show On Logout: Post-logout redirect URL.
    • Session Validation URL: For older SSO versions (remote login).
    • Import Metadata From Identity Provider: Uploads IdP-provided Entity ID, Redirect URL, and X.509 Certificate.

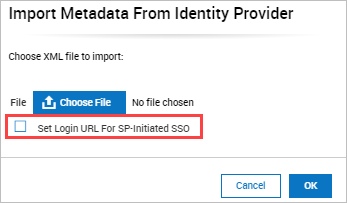

    Import Metadata

    • Set Login URL For SP-Initiated SSO: Overrides Redirect URL with imported metadata.

    SP-Initiated SSO

    • Entity ID of Identity Provider: Your IdP's unique identifier.
    • Error Handling: Configure Error URL and parameter names for error messages/numbers.

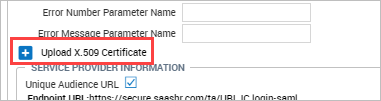

    • Upload X.509 Certificate: Manually upload the IdP-provided certificate.

SP Initiated SSO Example - How It Works

  1. User clicks a login link from an email.
  2. Redirected to the login URL with RelayState (e.g., https://login-redirect-url?RelayState=2g53i5g32523rfghdf).
  3. IdP creates a SAML response (POSTed to the endpoint URL):
    SAMLResponse=response&RelayState=2g53i5g32523rfghdf
    Endpoint URLs:
  4. US: https://secure.saashr.com/ta/company.login-saml
  5. EU: https://secure.workforceready.eu/ta/company.login-saml
  6. AUS: https://secure.workforceready.com.au/ta/company.login-saml
  7. After verification, user is redirected based on RelayState.

Sample SAML Response

Placeholders:

  • [[IDP_ENTITY_ID]]: Identity Provider's Entity ID.
  • [[COMPANY_SHORT_NAME]]: Your company's short name.
  • [[USERNAME]]: Valid employee username.
<?xml version="1.0" encoding="UTF-8"?>
<samlp:Response xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" ID="..." IssueInstant="2023-03-03T19:07:11.975Z" Version="2.0">
  <saml:Issuer>[[IDP_ENTITY_ID]]</saml:Issuer>
  <ds:Signature>...</ds:Signature>
  <samlp:Status>
    <samlp:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/>
  </samlp:Status>
  <saml:Assertion>
    <saml:Issuer>[[IDP_ENTITY_ID]]</saml:Issuer>
    <saml:Subject>
      <saml:NameID>[[USERNAME]]</saml:NameID>
    </saml:Subject>
    <saml:Conditions>...</saml:Conditions>
    <saml:AuthnStatement>...</saml:AuthnStatement>
  </saml:Assertion>
</samlp:Response>

E-Signatures

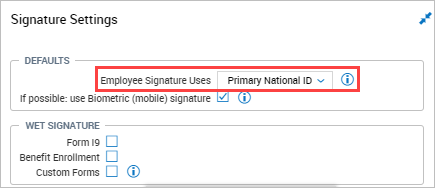

To avoid confusion, configure the Electronic Signature Uses field (under Signature Settings widget) to use a field other than Password.

Signature Settings

Errors

  • SAML 2.0 Errors: Check System Events report (Company Settings > System > Events).

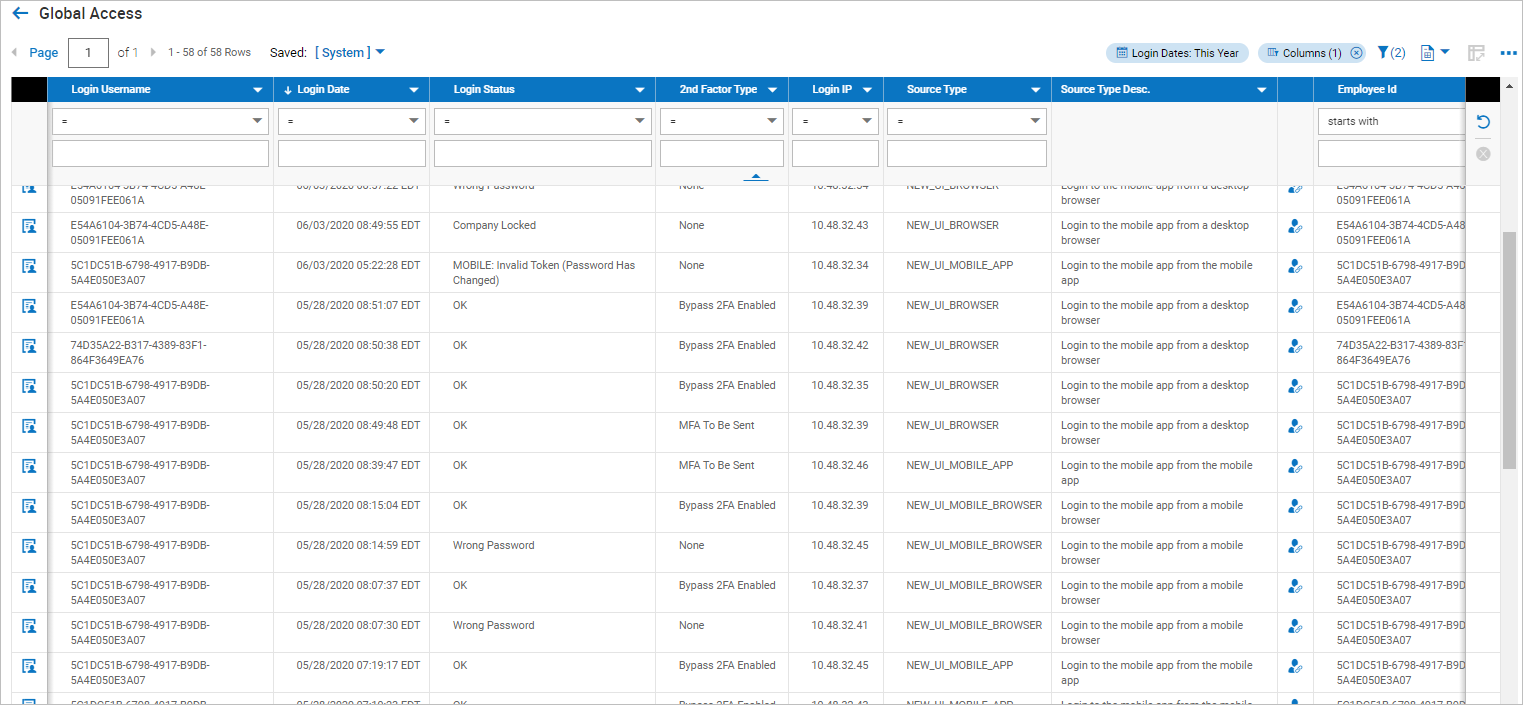

  • Username Issues: View Global Access report (My Info > My Reports > System Reports).

Error Reports

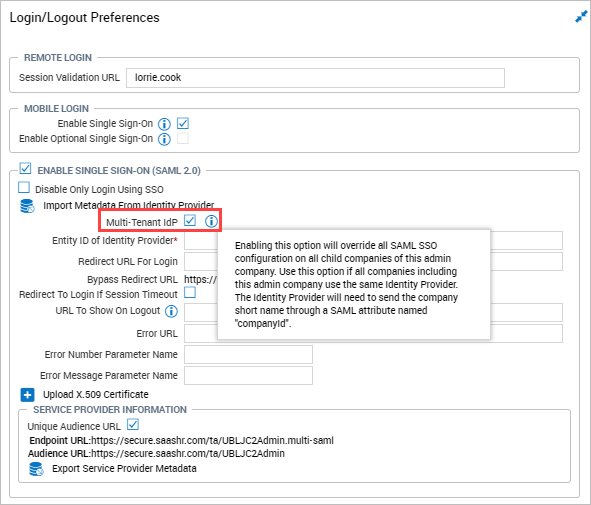

Multi-Tenant IDP (Partner Resellers Only)

Enable Multi-Tenant IDP at the Partner Admin Company Level to use a global IdP. The IdP must send the company short name via a companyId SAML attribute.

Multi-Tenant IDP

Google SSO on Mobile App

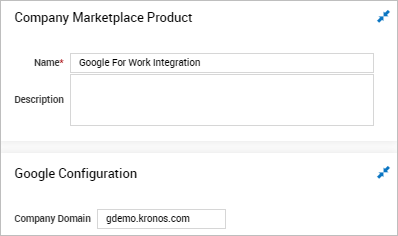

Requires Google Cloud Integration Marketplace product (domain must match company domain). Users must log in with their company Google account (consumer accounts unsupported).

Google SSO Setup

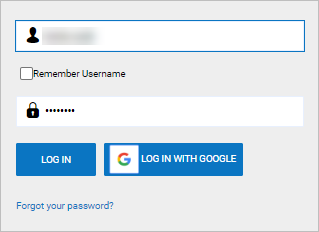

Google SSO Login

Active Directory, ADFS, and Azure with SAML 2.0

This section is provided for the convenience of our users who use Microsoft ADFS and/or Azure for SSO. It is not intended to be used for a complete deployment, troubleshooting, or configuration guide. For technical support regarding these Microsoft products, a wealth of information is available at Microsoft and other sites, including:

How to Set Up a Federation with the System using ADFS 2.0

Two steps are required to set up a federation between ADFS 2.0, the IdP, and the system, which is a trusted resource in this scenario. You will need to obtain an X.509 certificate and establish a trust relationship between the system and the ADFS 2.0 server.

In this scenario, the user enters the URL for the system in a browser or clicks a link from an email. When the system receives the request, it checks the request to determine if the user has been authenticated. If the authentication data is present, the user can access the system and is redirected back to the URL that they were initially attempting to access.

If the authentication data is not present, the request is redirected to an ADFS server for authentication. The system includes the X.509 certificate in any requests to authenticate the user. If the X.509 certificate is valid, the user is asked to login through ADFS. If authenticated, the request is redirected back to the original URL.

For all pieces to work correctly in this scenario, you must complete two steps.

  1. Obtain the certificate from the ADFS side and import it or upload it to the system.

  2. Import data about the system into ADFS. ADFS requires this step when configuring a Relying Party Trust.

Importing or Uploading the ADFS Certificates

To set up the certificate on the ADFS side, you can use a self-signed certificate generated by ADFS or use a different certificate. Two approaches can be used.

The recommended approach requires fewer manual steps. In this approach, the certificate is contained in the metadata XML file. The metadata can be downloaded from the following URL, where <server> is the ADFS server:

https://<server>/federationmetadata/2007-06/federationmetadata.xml

The metadata must then be imported to the system in the Enable Single Sign-On (SAML 2.0) section:

  • UKG Ready Partners: This is done in the Login/Logout Preferences widget in the Company Information page.

  • UKG Ready Customers: This is done in the Login/Logout Preferences widget in the Global Setup > Company Information page.

Multiple X.509 Certificates

Multiple X.509 certificates can be uploaded, and as a result, a new certificate can be uploaded alongside a soon-to-expire certificate to allow a simpler transition from the old certificate to the new one.

Expired or duplicate certificates cannot be uploaded, and a warning displays if a duplicate is uploaded. When a certificate is no longer valid, it is automatically removed after 15 days. Certificates display in a table for better readability.

An option to Replace Existing Certificates is available when importing metadata. When enabled, importing metadata deletes the existing certificate(s) and replaces it with the one from the metadata.

Expired certificates are hidden by default, and they can be shown when the Show Expired Certificates checkbox is enabled. This checkbox is only visible when the company has any expired certificates. The Valid To date displays in red for expired certificates.

Note

If all certificates are expired, the Show Expired Certificates checkbox is always enabled and all expired certificates are always shown.

As an alternative, the certificate can be downloaded directly by logging into the ADFS server.

  1. Start the Microsoft Management Console.

    You will need to run the Microsoft Management Console (MMC) program by clicking on Start, then selecting Run and entering "MMC".

  2. Start the Certificate Snap-in Wizard.

    Click on the File menu option and select Add/Remove Snap-in... Then select Certificates and click on Add.

  3. Specify where to get the file.

    After the Certificate Snap-in wizard starts, select Computer account and click the Next button.

    Since you are pulling the file from the local system, select Local computer, then click the Finish button and then click OK.

  4. Select the certificate.

    Expand Console Root\Certificates (Local Computer)\Personal\Certificates. Select the X.509 certificate by right-clicking on it. Select All Tasks, then click Export and then click Next.

    Choose No, do not export the private key option, then click Next.

    Choose the Base-64 encoded x.509(.CER) option, then click Next.

    Enter a file path and name then click the Next button.

    You should see a pop-up reading The export was successful, and you can click OK, then save and upload the exported file into the system using the Upload X.509 Certificate option.

Configuring Relying Party Trust Information

The ADFS 2.0 Management snap-in will be used to configure Relying Party Trust Information. From that tool, you can navigate to ADFS 2.0 > Trust Relationships > Relying Party Trusts. You'll need to right-click on Relying Party Trusts and select Add Relying Party Trust.

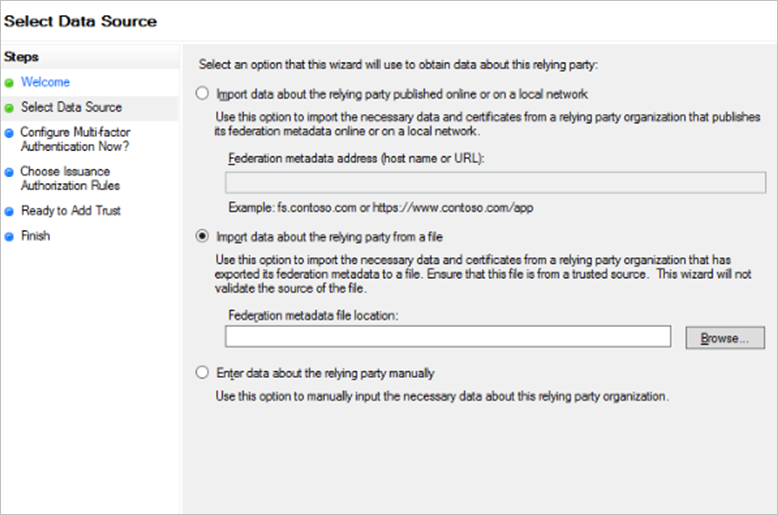

A wizard will start. Click the Start button. Two options are available, an import and manual text entry. The import option is recommended. Manual entry should only be used if your IdP cannot import the data from a file. This is not the case with ADFS.

If you have exported service provider metadata from the Login/Logout Preferences widget, you can upload the file. Within the Relying Party Trust wizard, choose Select Data Source and upload the file using the Import data about the relying party from a file option.

For Display name, enter any name (for example, Trusted Resource) and click the Next button.

Manually Entering the Relying Party Information

If your IdP cannot import a file, the alternative is to choose Enter data about the relying party manually option and click the Next button.

You'll need to step through each of the sections in the Relying Party Trust wizard.

  1. In the Specify Display Name section, enter any name for Display (for example, Trusted Resource) and click the Next button.

  2. For the Choose Profile section, select AD FS 2.0 profile and click the Next button.

  3. For the Configure Certificate section, click the Next button as the system does not support a token encryption certificate.

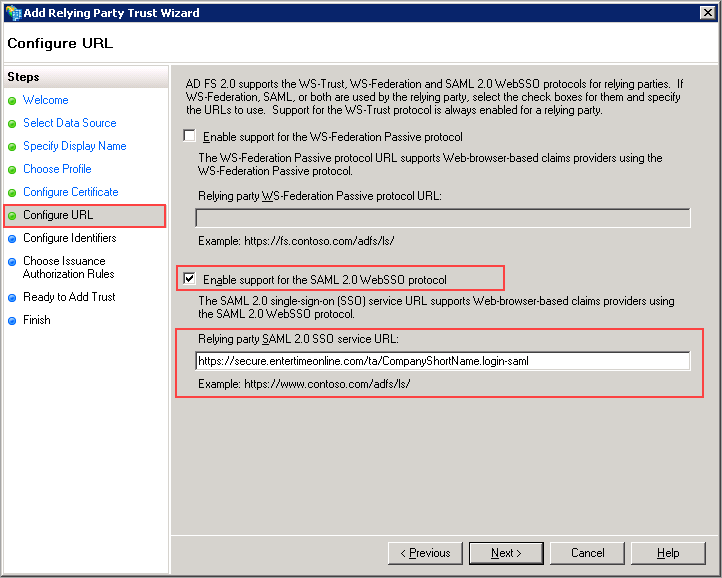

  4. For the Configure URL section, check Enable support for SAML 2.0 Web SSO protocol. For the Relying party SAML 2.0 SSO service URL, enter the Service Provider (SP) URL. This is the Endpoint URL shown in the Service Provider Information in the Login/Logout Preferences widget.

  5. Click the Next button.

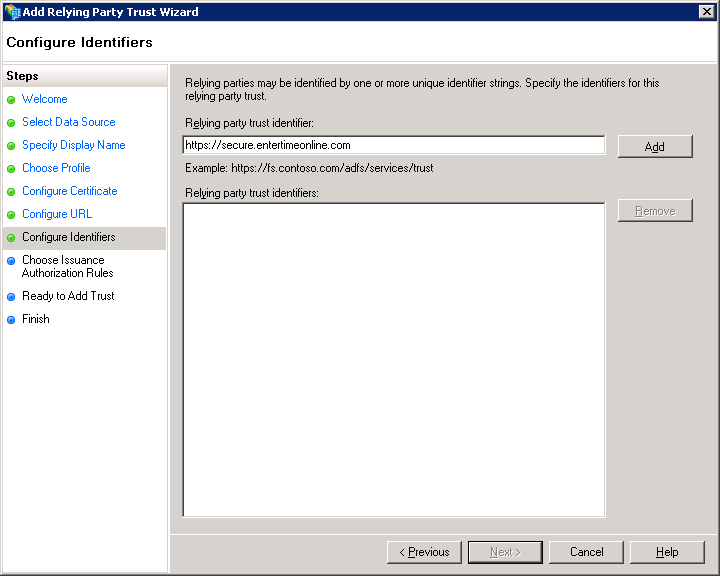

  6. In the Configure Identifiers section, you'll need to enter some system URLs. In the Relying party trust identifier, the system's SAML endpoint needs to be entered. This is the Audience URL shown in the Service Provider Information in the Login/Logout Preferences screen, for example: <https://secure2.saashr.com>

  7. Click the Add button then click the Next button.

  8. For the Choose Issuance Authorization Rules section, select Permit all users to access this relying party then click the Next button.

  9. For the Ready to Add Trust section, you can review the configuration on this screen. Once you are satisfied with the information click the Next button.

  10. Click the Close button.

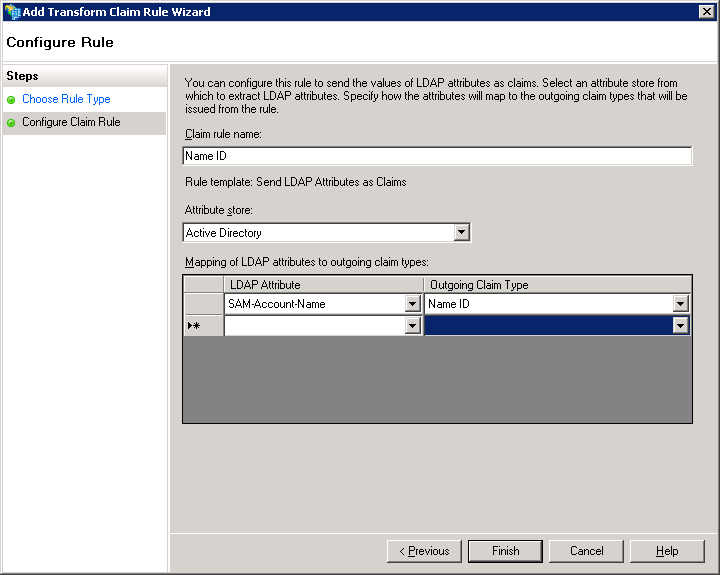

Claim Rules

You should now see a dialog box to add Claim rules to the Trusted Resource relying party that was just configured. There is only one claim that needs configuration before sending to the system: Name ID. The next steps show you how to configure this. As with any federation configuration, case sensitivity is critical. Please make sure to use the matching case when configuring the claim names.

  1. In the Trusted Resource Claim rules click the Add button.

  2. For the Claim rule template field, select Send LDAP attributes as Claims then click the Next button.

  3. Enter any name for the Claim rule name, for example, Name ID.

  4. For the Attribute store field, drop down and select Active Directory.

  5. In the LDAP Attribute section, drop down and select SAM-Account-Name.

  6. In the Outgoing Claim Type section, drop down and select Name ID.

  7. Click the Finish button.

  8. Click the OK button on the Claim rule configuration for Trusted Resource.

    Since we have configured this as a SAML assertion we can use the LoginToRP feature with the IDPInitiatedSignon page to get the users signed into ADFS and then redirect them to WFR. Here is an example of this assuming that the ADFS server name is adfs.example.com. The URL would be:

    https://adfs.example.com/adfs/ls/IDPInitiatedSignon.aspx?LoginToRP=https://secure.entertimeonline.com

Configuring Single Sign-On OAuth 2.0

OAuth 2.0 (Open Authorization) provides clients secure delegated access to server resources on behalf of a resource owner. It specifies a process for resource owners to authorize third-party access to their server resources without sharing their credentials.

Designed specifically to work with Hypertext Transfer Protocol (HTTP), OAuth 2.0 essentially allows access tokens to be issued to third-party clients by an authorization server, with the approval of the resource owner. The third-party then uses the access token to access the protected resources hosted by the resource server.

It works by delegating user authentication to the service that hosts the user account and authorizing third-party applications to access the user account. OAuth 2.0 provides authorization flows for mobile devices, as well as web and desktop applications.

Note

For Partners, OAuth 2.0 can be added to Admin and Holding companies, but each client company must be configured individually.

Configuring OAuth 2.0

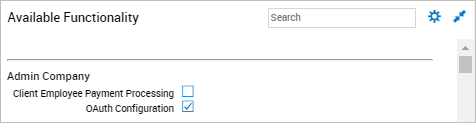

Enable OAuth 2.0 in the Available Functionality widget of your company. Check the OAuth Configuration checkbox, save and then log in as SA. This will make the widget available in Company Setup.

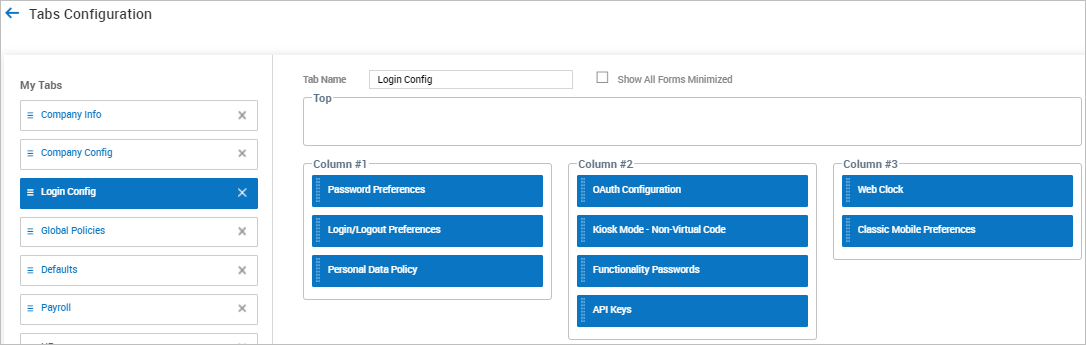

Navigate to Company Settings > Global Setup > Company Setup. From Edit Tabs, locate and drag the OAuth Configuration widget to the tab of your choice and save.

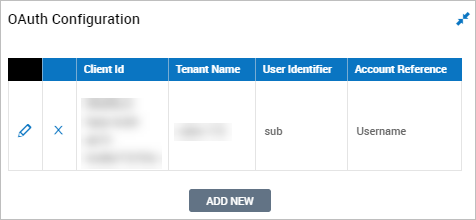

From the widget, select Add New to create a new tenant.

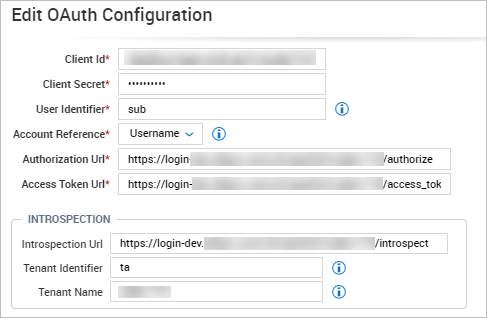

With the exception of the Account Reference fields, the remaining fields will come from the authorization server. There are multiple OAuth vendors available. Once you have chosen one and have set up your account, the vendor will provide you with the information you need to complete this widget.

  • Client ID: This is a required field and the ID will be generated by the authorization server.

  • Client Secret: This is a required field and acts as a password.

  • User Identifier: This is a required field. This identifier is the name of the standard field (claim) that identifies the subject (user) of the Access Token. It is used to identify the system user account in our system.

  • Account Reference: This is a required field. You can select Account ID, Employee ID, External ID, or Username. This is used to match the user account information to the User Identifier value from the Access Token.

  • Authorization URL: The authorization URL generated for your company from the authorization server.

  • Access Token URL: The access token URL generated for your company from the authorization server.

  • Introspection URL: The introspection URL generated for your company from the authorization server.

  • Tenant Identifier: The name of the standard field (claim) that identifies the tenant (company) of the Introspection Token.

  • Tenant Name: The expected value of the tenant. It should be matched to the Tenant Identifier value from the Introspection Token.

Differences Between SAML 2.0 and OAuth 2.0

You can use SAML 2.0 or OAuth 2.0 for Single Sign-On authorizations. Consider these differences between the two options.

  • OAuth 2.0 is primarily built for mobile environments.

  • SAML 2.0 is more geared for desktop environments.

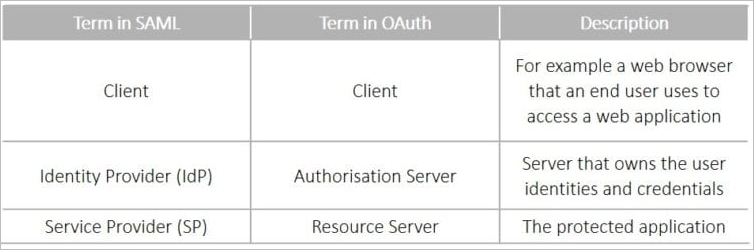

Also, be aware of the different definitions for the same terms between the two options.

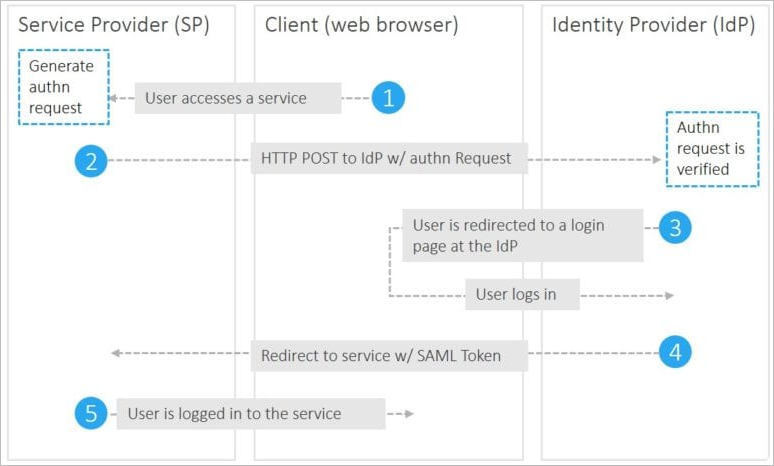

SAML 2.0 Flow

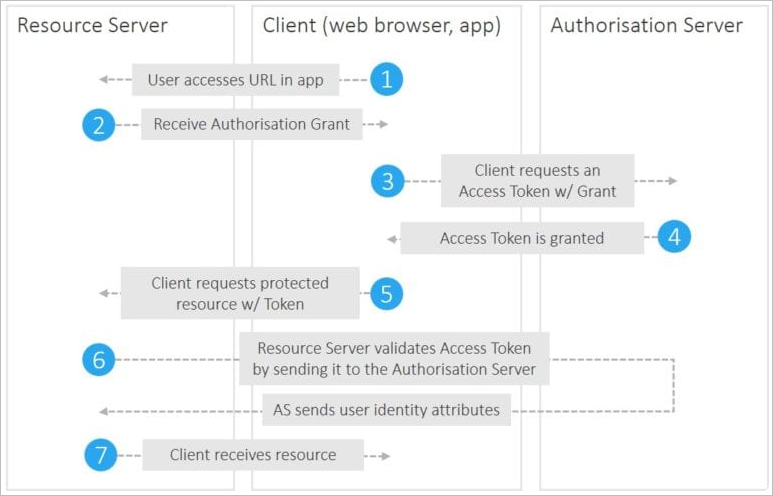

OAuth 2.0 Flow
